Raspberry Pi OS

Supported Raspberry Pi models and distributions

• Raspberry Pi (all models, except Pico)
• Raspberry Pi OS

Installing the Operating System

1. Download and launch Raspberry Pi Imager from the website www.raspberrypi.com/software

2. Insert the SD card into your PC or an SD card reader.

3. Raspberry Pi Device: Select your Raspberry Pi model.

4. Operating System: Select a current operating system.

5. Storage: Select the SD card drive.

6. Use OS Customisation: Click No if the default settings are acceptable, for example, if you are using an Ethernet cable and have direct access via a connected mouse, keyboard, and monitor. Otherwise, click Yes to adjust the settings: hostname, username, password, Wi-Fi, time zone, and keyboard layout, and save them with save.

6. To access the Raspberry Pi remotely, i.e., without a connected mouse, keyboard, and monitor, it is important to enable the SSH interface under the Services menu. Furthermore, you should assign your own login credentials under Set username and password.

7. Write: Start the copying process

8. Remove the SD card from the card slot (eject it in Windows Explorer → right-click on the drive letter and select Eject)

9. Insert the microSD card into the Raspberry Pi’s SD card slot

10. Connect the USB cable to the Raspberry Pi. The operating system will start automatically after approximately three seconds and will be ready for use after approximately one minute.

Remote Access

Remote access to the Raspbian OS desktop is via the VNC interface. This must first be enabled after successful operating system installation.

1. To do this, log in to the Raspberry Pi using a suitable SSH console program via its IP address, with the previously assigned Username and Password, and enter the following command:

    sudo raspi-config

2. In the menu item 3. Interface Options, set the I3 VNC option to Enable.

3. Restart the Raspberry Pi

    sudo reboot

You can now access the Raspbian OS desktop using a suitable VNC program.

deCONZ Installation

1. Set user USB access rights

    sudo gpasswd -a $USER dialout

   Note: Changes to access rights only become active after logging out and in or after a restart.

2. Import Phoscon public key

    wget -qO- https://phoscon.de/apt/deconz.pub.key | gpg --dearmor | \
             sudo tee /etc/apt/trusted.gpg.d/deconz-keyring.gpg >/dev/null

3. Configure the APT repository for deCONZ

   Stable

    sudo sh -c "echo 'deb http://phoscon.de/apt/deconz \
               generic main' > \
               /etc/apt/sources.list.d/deconz.list"

   Beta (alternative)

    sudo sh -c "echo 'deb http://phoscon.de/apt/deconz \
               generic-beta main' > \
               /etc/apt/sources.list.d/deconz.list"

4. Update APT package list

    sudo apt update

5. Install deCONZ

   When using an older distribution (before Debian Bookworm)

    sudo apt install deconz

   When using a current distribution with Qt6 (from Debian Bookworm onwards)

    sudo apt install deconz-qt6

6. Create UDEV rule

    echo ACTION=='"add"', SUBSYSTEMS=='"usb"', \
         ATTRS{product}=='"ConBee III"', \
         RUN+='"/bin/stty -F /dev/%k 115200"' | \
         sudo tee /etc/udev/rules.d/99-conbee3.rules

   Note: The ConBee III gets activated after a restart or unplug / reattach.

After the installation deCONZ can be started via the application menu.

Menu > Programming > deCONZ

Now the first Zigbee devices can be paired via the Phoscon App. Further information can be found in the Phoscon App documentation.

Auto start of the deCONZ GUI (optional)

Start the GUI service every time the system starts.

sudo systemctl enable deconz-gui

Troubleshooting

If problems occur during the installation, the Support section answers frequently asked questions (FAQ) and provides further assistance.

Ubuntu

Supported Ubuntu versions

• Ubuntu 18.04 LTS 64-Bit PC (AMD64)
• Ubuntu 20.04 LTS 64-Bit PC (AMD64)

Installation

1. Set user USB access rights

    sudo gpasswd -a $USER dialout

   Note: Changes to access rights only become active after logging out and in or after a restart.

2. Import Phoscon public key

   wget -qO- https://phoscon.de/apt/deconz.pub.key | gpg --dearmor | \
             sudo tee /etc/apt/trusted.gpg.d/deconz-keyring.gpg >/dev/null

3. Configure the APT repository for deCONZ

   Stable

   sudo sh -c "echo 'deb [arch=amd64] http://phoscon.de/apt/deconz \
               generic main' > \
               /etc/apt/sources.list.d/deconz.list"

   Beta (alternative)

   sudo sh -c "echo 'deb [arch=amd64] http://phoscon.de/apt/deconz \
               generic-beta main' > \
               /etc/apt/sources.list.d/deconz.list"

4. Update APT package list

    sudo apt update

5. Install deCONZ

   When using an older distribution (before Ubuntu 24.04)

    sudo apt install deconz

   When using a current distribution with Qt6 (from Ubuntu 24.04 onwards)

    sudo apt install deconz-qt6

6. Create UDEV rule

    echo ACTION=='"add"', SUBSYSTEMS=='"usb"', \
         ATTRS{product}=='"ConBee III"', \
         RUN+='"/bin/stty -F /dev/%k 115200"' | \
         sudo tee /etc/udev/rules.d/99-conbee3.rules

   Note: The ConBee III gets activated after a restart or unplug / reattach.

After the installation deCONZ can be started via the application menu.

Now the first Zigbee devices can be paired via the Phoscon App. Further information can be found in the Phoscon App documentation.

Auto start of the deCONZ GUI (optional)

1. Open the Startup Application Preferences via the application menu

    gnome-session-properties

2. Add a new entry with the following commandline:

    deCONZ --http-port=80 --auto-connect=1



Troubleshooting

If problems occur during the installation, the Support section answers frequently asked questions (FAQ) and provides further assistance.

Linux Headless

The SD card images as well as the standard installation method start automatically with graphical user interface.

Switch off graphical user interface (headless)

To switch off the graphical user interface (GUI), the following commands must be entered in the console:

1. Stop the GUI service immediately.

     sudo systemctl disable --now deconz-gui

2. Start the headless service now and every time the system starts.

     sudo systemctl enable --now deconz

Switch on graphical user interface (GUI)

To switch on the graphical user interface (GUI), the following commands must be entered in the console:

1. Stop the headless service immediately.

     sudo systemctl disable --now deconz

2. Start the GUI service now and every time the system starts.

     sudo systemctl enable --now deconz-gui

Home Assistant ZHA

Supported versions

Minimum requirements:

• Home Assistant Core 2023.12.0 (stable version)
• ConBee III firmware version 0x264E0900

Update ConBee III

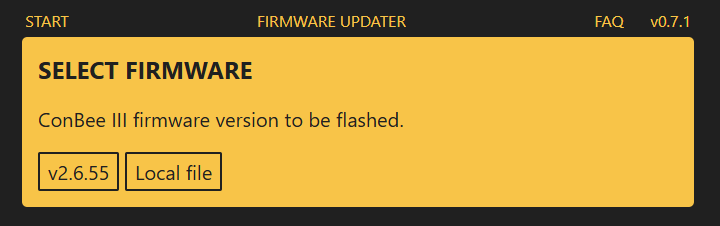

The ConBee III firmware must be updated manually via the command line as described in the wiki article Update ConBee III firmware manually and Youtube-clip, to ensure a proper function with the ZHA integration. The updae proces behaves exactly like the ConBee II update. The necessary update tool GCFFlasher is available as stand-alone version for download.

Installation

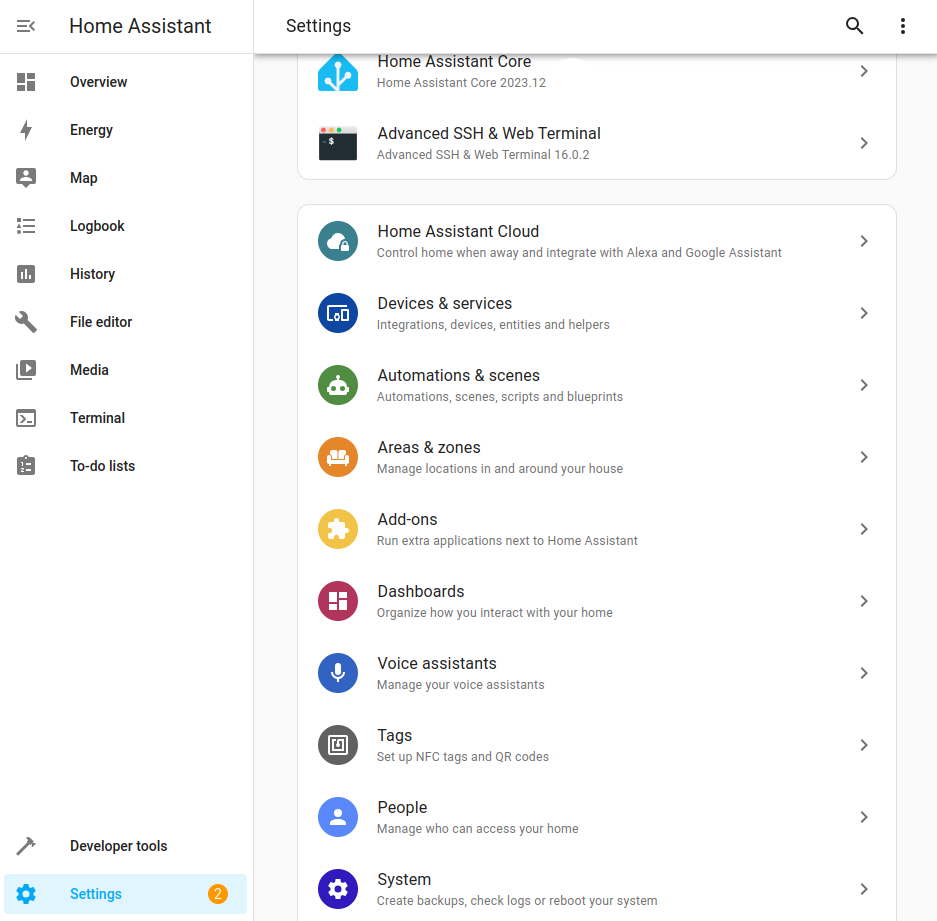

1. Login into Home Assistant web interface and open the Settings section.

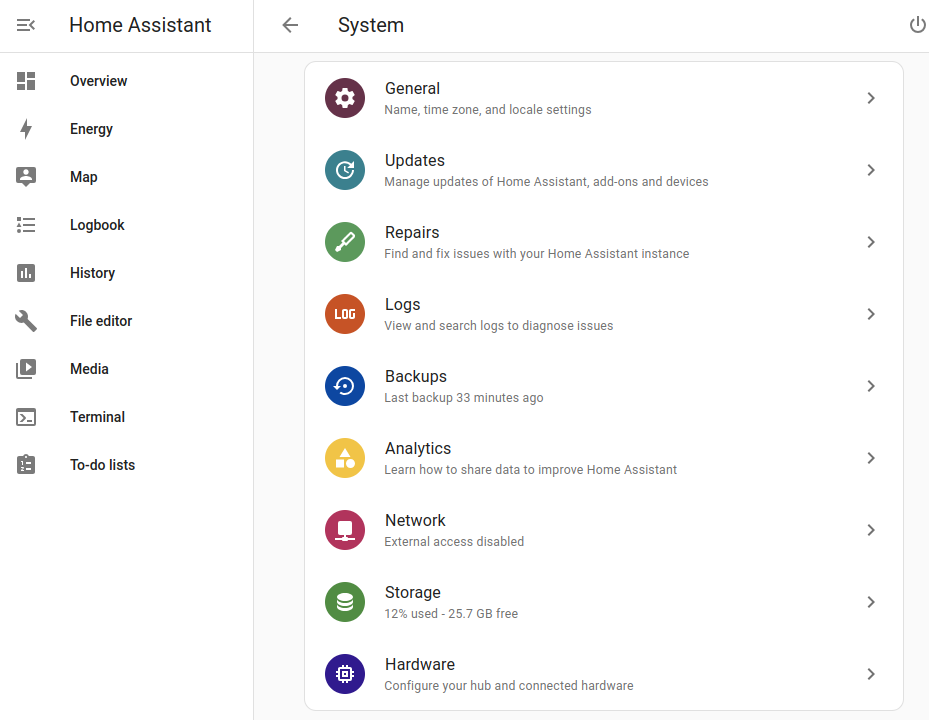

2. Open the settings of the System and switch to the Updates section.

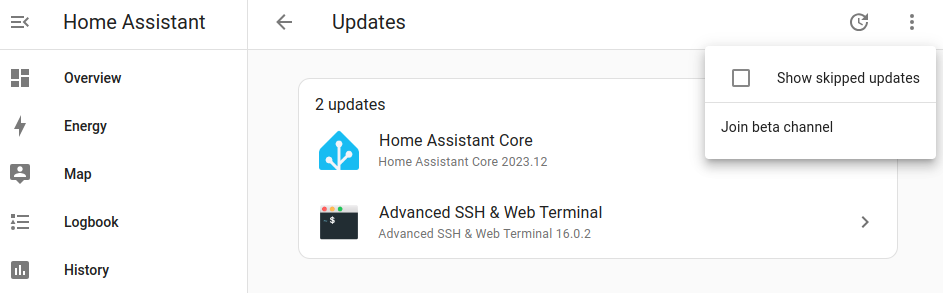

3. Update the Home Assistant core at least to 2023.12.0.

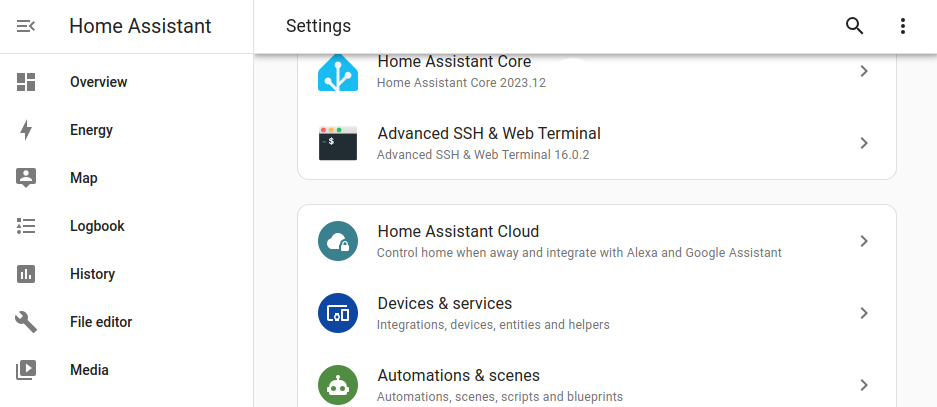

4. Open Devices & Services in the settings section.

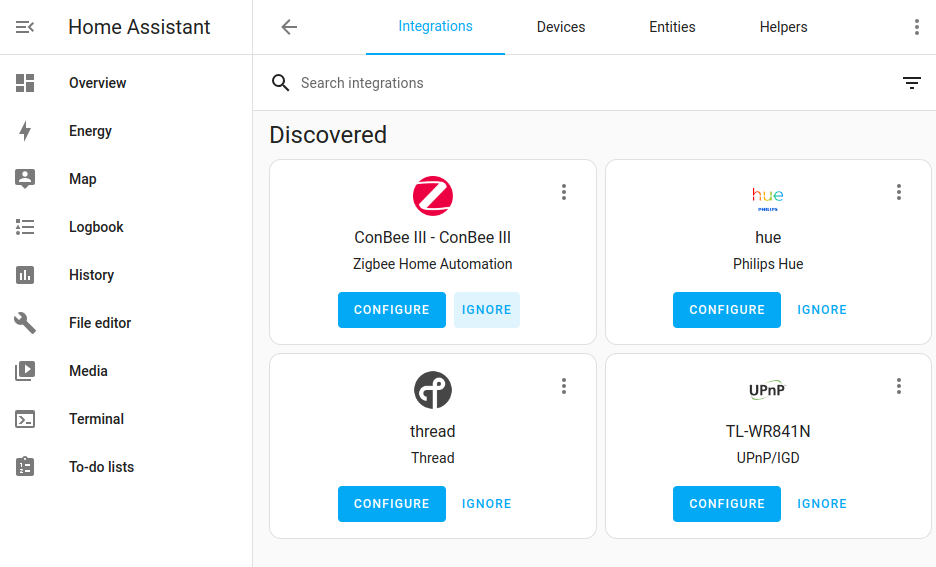

5. Search and add the ZHA service.

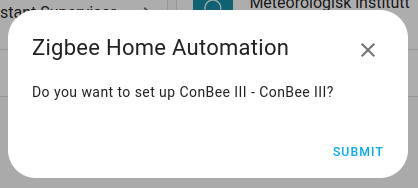

6. Configure the ZHA integration to set up the ConBee III.

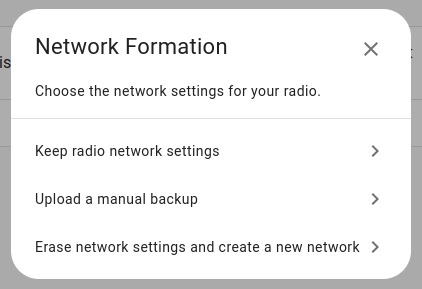

7. Define the network formation: keep network settings, upload a backup or create a new network.



Docker

Supported host systems

• Linux x86_64/amd64
• Linux armv7 (e.g. Raspberry Pi)
• Linux arm64

To run deCONZ in a Docker container, we recommend the Docker image deconz-community/deconz-docker, which is maintained by the community.

The installation steps are described on https://github.com/deconz-community/deconz-docker.
