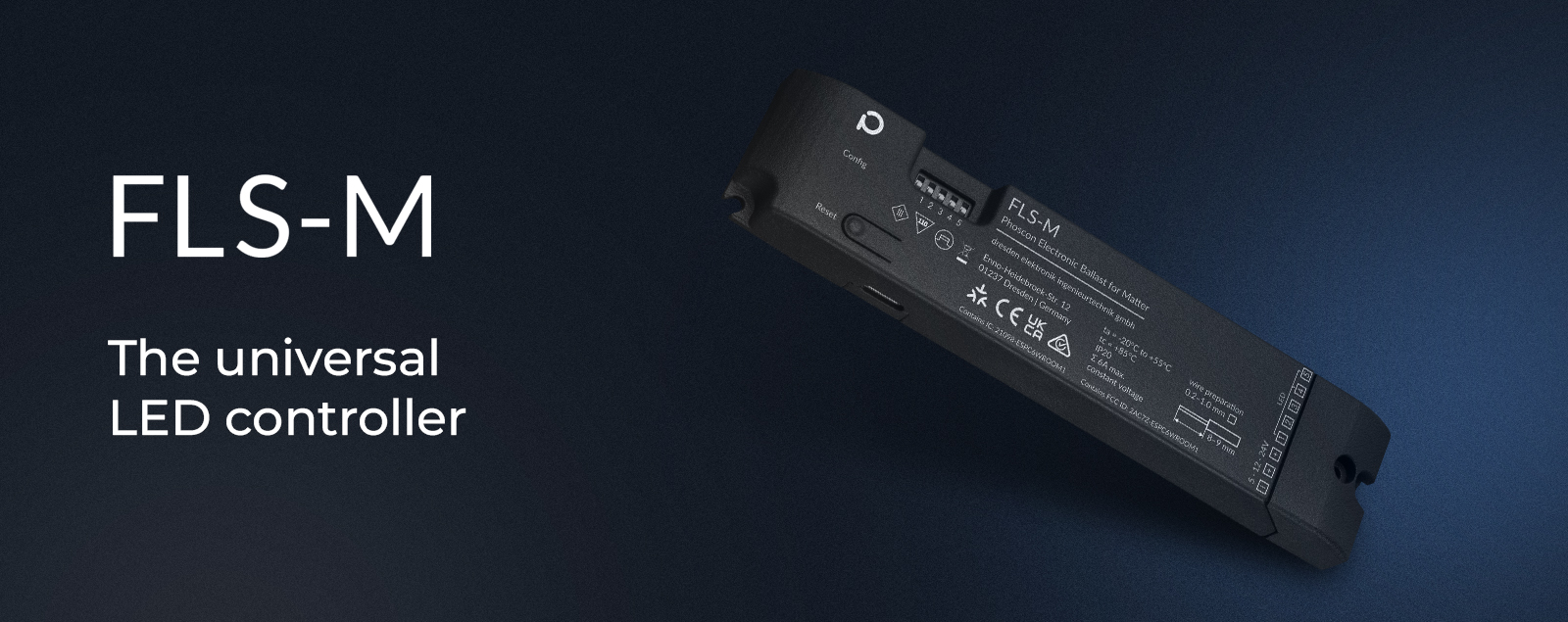

• Electronic wireless ballast for controlling LEDs
• Supports Matter over WiFi and Zigbee 3.0
• Supports classic LED strips and individually addressable LED strips
• Suitable for LEDs with 5 V, 12 V and 24 V DC operating voltage
• Slim design suitable for installation in profile rails and furniture

Features

• Supports RGB, RGBW, RGB+CCT as well as CCT and monochromatic LED strips
• Connection of individually addressable LEDs with WS2812, WS2812B, TM1814, SK6812 controller possible
• Simultaneous use of classic and individually addressable LEDs possible
• Modern Espressif ESP32-C6 microcontroller
• Multi-protocol radio for Matter over WiFi as well as Zigbee 3.0 and future Matter over Thread applications
• Versatile configuration via DIP switches and USB-C interface

1. Button for resetting to factory settings
2. DIP switch for quick configuration
3. Connection terminal for power supply and LEDs
4. Status LED for the operating status
5. USB-C socket for extended configuration

Requirements

Matter over WiFi

The FLS-M is a certified Matter device and therefore works with all approved Matter controllers from Apple, Google, Amazon etc. that support WiFi.

• An overview of approved Matter controllers can be found in the section Commissioning
• Access to a local WiFi network is also required

Zigbee

The FLS-M can optionally be used as a fully functional Zigbee LED controller. A Zigbee gateway is required for this.

• A gateway from Phoscon is recommended, such as the ConBee III, ConBee II and RaspBee II
• The Philips Hue Bridge, Ikea Tradfri Gateway, Home Assistant ZHA, and many more are also supported.

Applications

Enables a wide variety of solutions

• Workplace lighting in kitchens
• Ambient lighting in living rooms
• Effect lighting for gamers
• Space-saving installation in furniture

Zone lighting with addressable LED strips

Enables completely new lighting concepts

• Divide an LED strip into several lighting zones
• Everything can be realized with standard components
